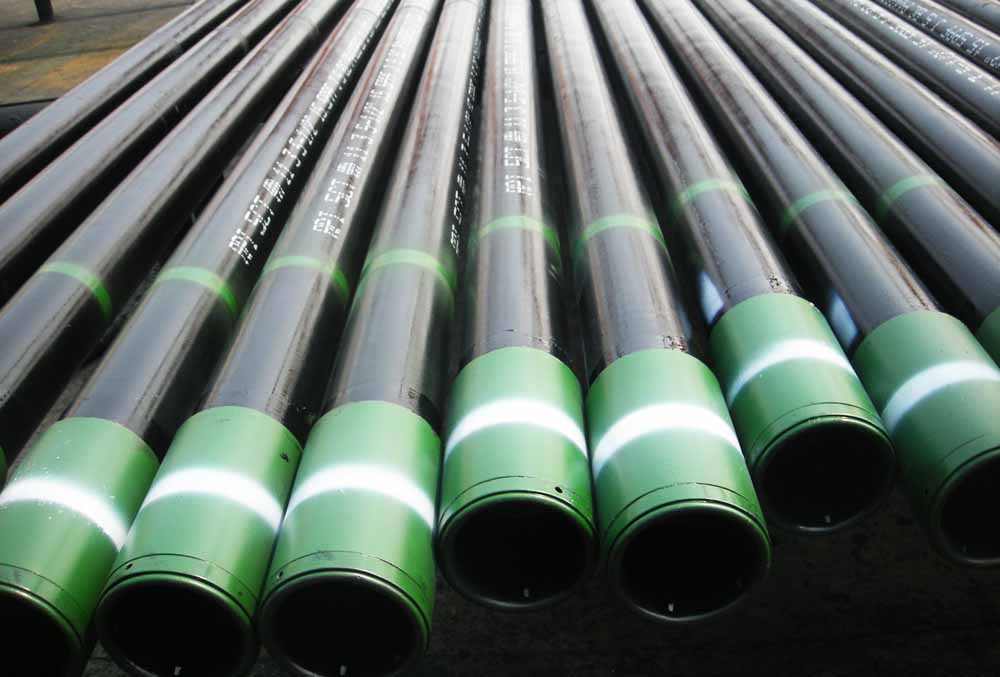

API series tubing and casing mainly refer to the implementation of the American Petroleum Institute API SPEC 5CT standard steel pipe, mainly used in the exploration of oil, natural gas and other resources. The tubing is used to extract oil or gas from oil wells; the casing is used to fix the wellbore and insolate the annulus and rock formation.

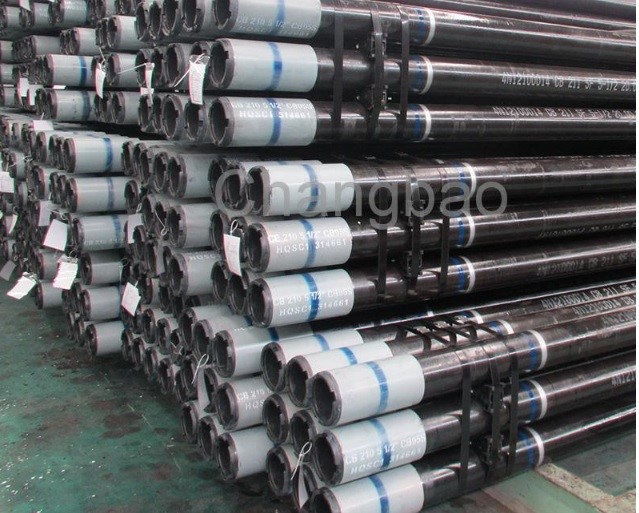

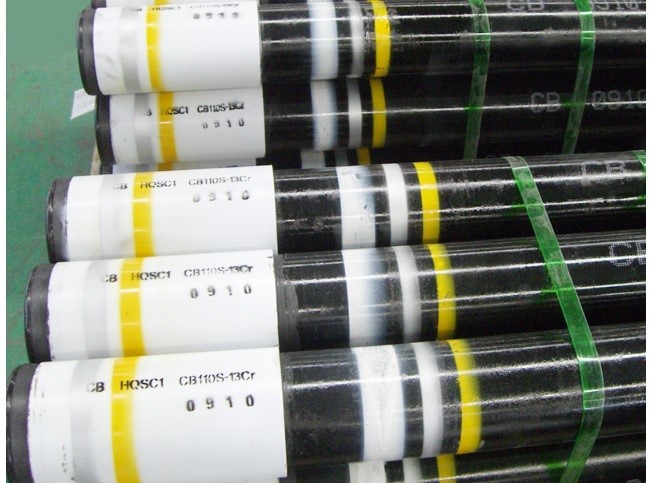

CO2 corrosion resistant premium connection tubing and casing, with good performance in CO2 corrosion resistant, which is specially designed by seal lock connection applies to sour oil & gas well that contains CO2 or both CO2 and CL. Pipe body is produced with economic low-alloy steel billet containing Cr, Ni, Mo etc or stainless 13Cr, 15Cr steel billet, which have good performance in thermodynamic stability. Our offered CBS3 premium connection has passed CAL-IV test, which is the highest level required by ISO 13679. Regular steel grade for CO2 corrosion resistance CB80-3Cr, L80-9Cr, L80-13Cr, CB90-3Cr, CB95-3Cr, CB95-13Cr, CB110-3Cr, CB110-5Cr, CB110-13Cr, CB110S-13Cr
H2S corrosion resistant premium connection tubing and casing is seal lock joint used for oil and gas exploration under H2S corrosion condition. Pipe body is produce with Cr-Mo steel billet that can resist H2S stress corrosion and the component of billet is on Changbao’s self research. Our offered CBS3 premium connection, applies to H2S corrosion resistance tubing and casing has passed CAL-IV test, which is the highest level required by ISO 13679. Regular steel grade for H2S corrosion resistance CB80S, CB80SS, C90, CB90S, CB90SS, T95, CB95S, CB95SS, C110, CB110S, CB110SS

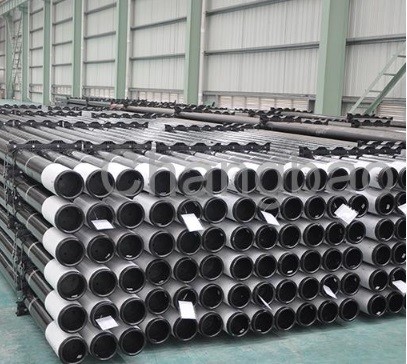

CBS3 – Metal to metal Seal Lock Connection has design feature of a negative load flank of -30, enlargement of gap on the top of the tooth on pin. Also reduction gap on thread guiding profile. The main advantages are its super tensile strength, Super anti-galling performance, Homogeneous compound distribution and super mechanical property under compression and tensile. In terms of sealing performance, it has no gas leakage under composite load. 100% same performance as pipe body (tensile strength, outside collapse resistance, internal pressure resistance). Also convenient to use and no galling within 10 times making up and screwing off.

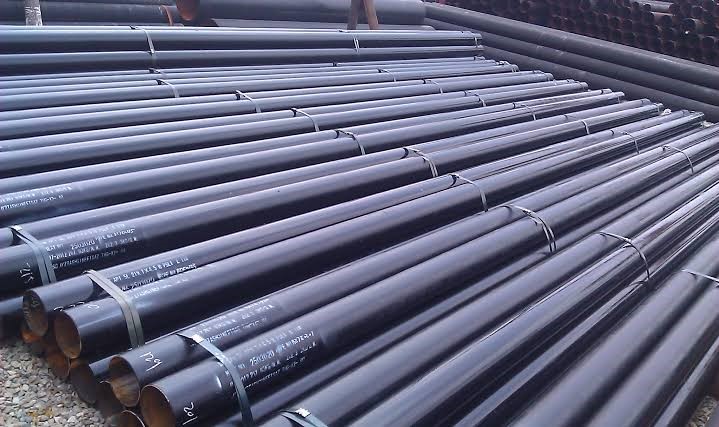

Seamless line pipes manufactured according to API Specification 5L which is mainly used for transportation of oil, gas and water.
RE-Studio is the ideal environment for every reservoir engineer involved in hydrocarbon dynamic flow simulation, with oil and gas industry standard simulators. RE-Studio modules best fit your needs

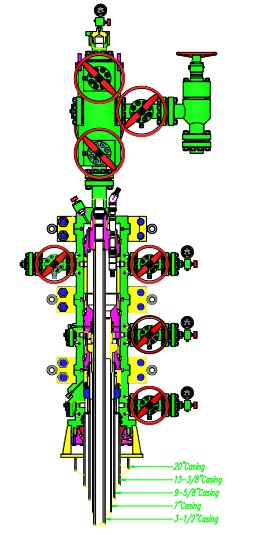

X-mass tree is used for well drilling and production, water injection and down-hole operation. They are installed on the top of a well to seal the annular space between casing and tubing, can control wellhead pressure and adjust well flow rate and transport crude from well through pipeline.
Design and manufactured strictly in accordance with APISPEC 6A and NACE MR-0175 specifications. Compact design, reliable operation Rated working pressure 5,000 PSI to 15,000 PSI series available Metal seal available from tubing hanger to the whole X-mas tree Flange connection “VR” thread available for gate valve removal/installation, by-pass valve can be replaced under pressure Series tubing hanger available for various well completion needs BPV tools available
Design and manufactured strictly in accordance with API SPEC 6A and NACE MR-0175 specifications Used in Offshore Platform normally. Few BOP to be installation to save time and space. Block Type designed to save the space in Platform. Flange Connection/Quick Couplings Connection

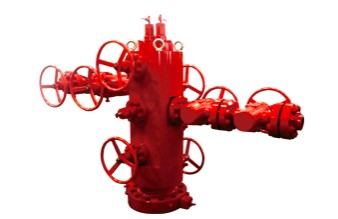

The dual tubing Wellhead system adapts compact wellhead technology and produces oil from different layers separately of the same well. The main structure is to place two comparallel tubing strings inside the same production casing, both tubing strings are separated by dual-tubing hanger. Dual Tubing X-mas tree seated above with compact design & good sealing performance.
Two-in-one wellhead system adapts compact wellhead technology and produces oil from different layers separately in the same well under dual- casing & tubing system. The main structure is to place two comparallel casing strings and tubing strings inside the same surface casing, both tubing strings are separated by dual-tubing hander, integrated X-mas tree above with compact design & good sealing performance.
Fracturing X-mas tree is one of the most important components fracturing equipments, it is consisted with several fracturing gate valves and fracturing goat head. The fracturing liquid is pumped into the fracturing goat head through several fracturing manifold, then pumped to the bottom of well to perform the fracturing service on designated formations through fracturing gate valves. The open and close of fracturing gate valves is used to control the fracturing liquid. Main bore size 7-1/16’, max working pressure 15,000 PSI.

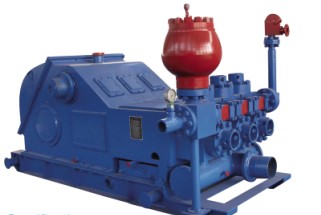

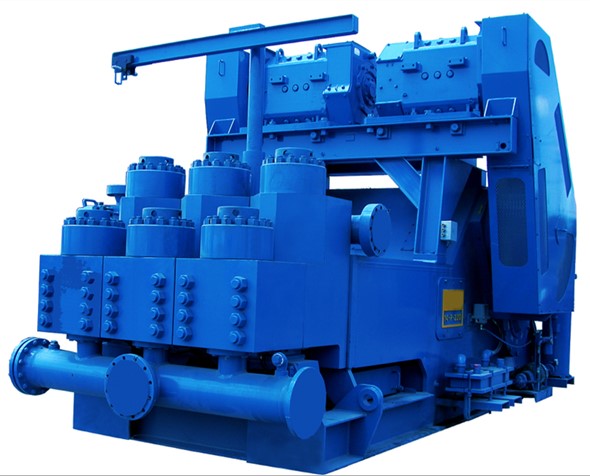

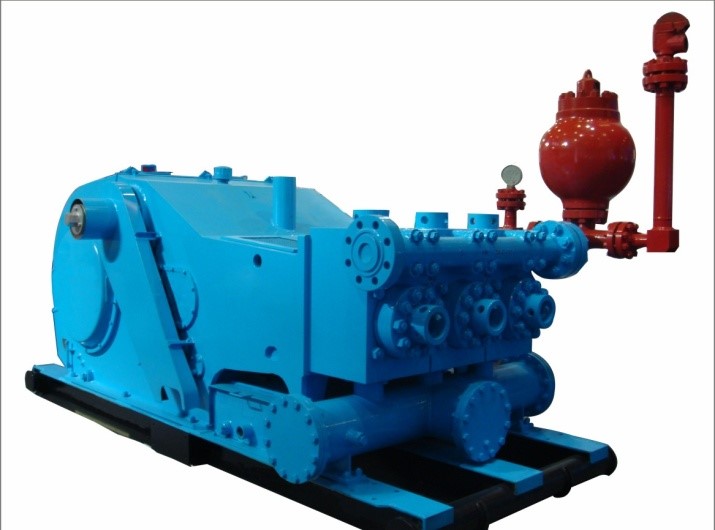

Triplex Mud Pumps from 350HP to 2200HP including F series, 3NB series, and P series. All of them are manufactured under API SPEC 7K License and interchangeable with the OEM. Full-line of triplex and quintuplex plunger pumps from 600 to 2500 Horsepower including HT-400, TWS-600(S), TWS-1000, TWS-2250 etc Replacement parts for oil & gas drilling and well servicing Mud Pump and Plunger pumps such as fluid end module, liner, valve & seat, piston, piston rod, clam, pony rod, plunger, crankshaft, pinion shaft, gear, crosshead, connecting rod, pulsation dampener, safety valve etc are also available for immediate delivery.
Long stroke enables operation under low speed to lengthen the use of vulnerable parts at the fluid end Forced lubrication combined with splash lubrication make the lubrication effective Advanced structure is durable ensuring smooth operation and meeting the special requirements of customers to drill medium deep wells Compact, safe suction valve and discharge valve are interchangeable, main components of hydraulic cylinder and fluid end on each pump are interchangeable Durable fluid end greatly improves the performance of triplex mud pump; furthermore, its independent structure makes examination and maintenance convenient
Dynamic End: the frame is a welded structure with steel plate subject to post welding internal stress relief. The type of transmission gear is involute, smooth running, efficient, and durable. Crankshaft is one-piece hollow cast and is splash lubricated
Fluid End: suction flange and discharge flange conform to ASA and API specification
Piston rod and extension rod are connected by clamp to make assembly and disassembly easy and quick
Bench at the bottom of valve positioning hole prevents valve seat sinking. Piston and cylinder liner are cooled and lubricated by independent spraying pump device for longer service life
Vulnerable parts are interchangeable
• Compact, light-weighted, efficient, can afford to provide different pumps in accordance with different requirements and conditions of rigs
• Can ensure itself to operate smoothly, meeting the special requirements of drinnling shallow wells and medium deep wells
• Five optional models with input power ranges from 597kW to 1640kW
• Durable hydraulic end greatly improves the performance of triplex mud pump
• Unique design makes inspection and repair fast and convenient
NPU of different models 90K, 180K & 360K are available and can be customized according to clients needs like deck engines & chassis.

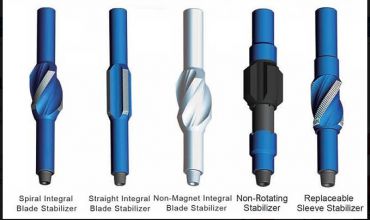

A drilling stabilizer is a piece of downhole equipment used in the bottom hole assembly (BHA) of a drill string. It mechanically stabilizes the BHA in the borehole in order to avoid unintentional sidetracking, vibrations, and ensure the quality of the hole being drilled. It is composed of a hollow cylindrical body and stabilizing blades, both made of high-strength steel. The blades can be either straight or spiralled, and are hardfaced for wear resistance.
